23.9hp
ENGINE POWER
2000kg
OPERATING WEIGHT
0.06 m3
BUCKET CAPACITY
$11600

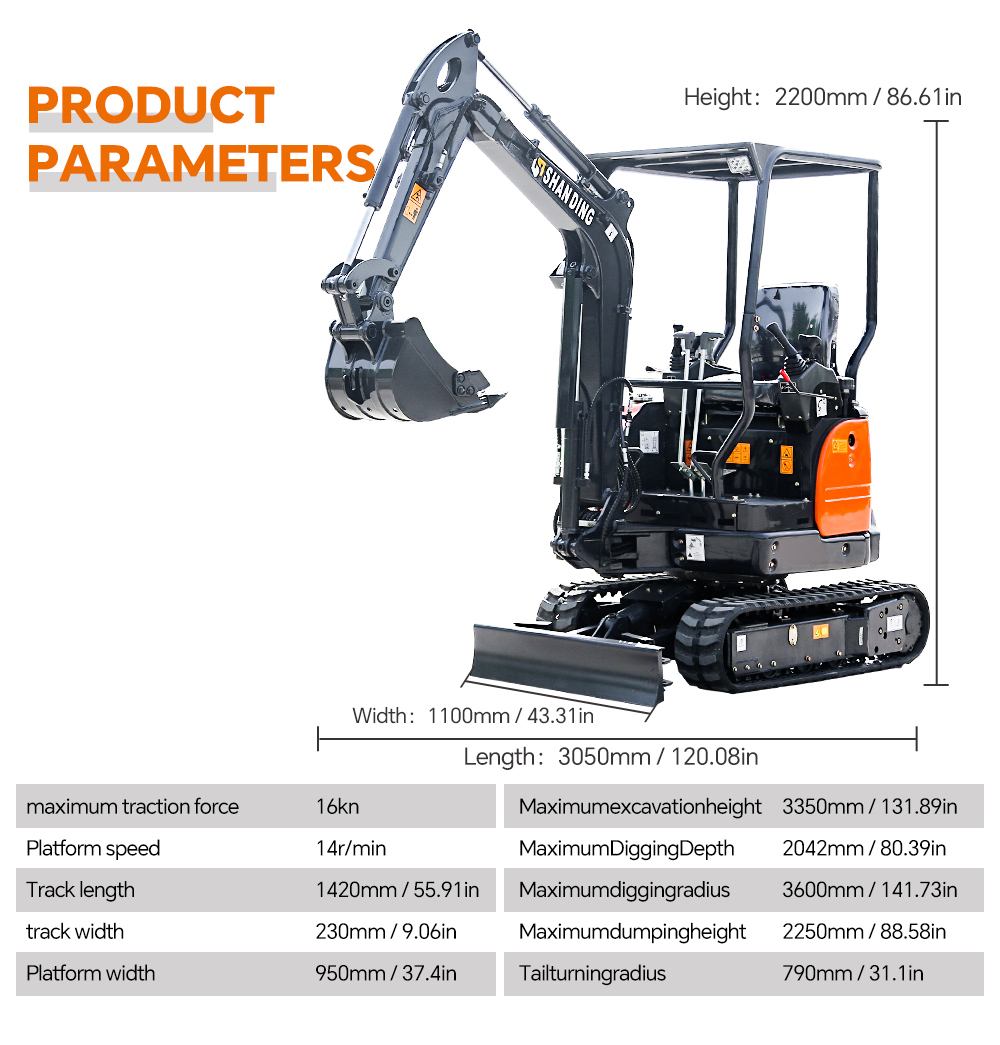

| model | SD20U | Total height | 2200mm |
| Overall weight | 1.8t | arm length | 920mm |
| Bucket capacity | 0.06m³ | boom length | 1650mm |
| rated power | 14.7kw | Track length | 1420mm |
| Maximum hydraulic system pressure | 18mpa | track width | 230mm |
| Maximum climbing angle | 30° | Platform width | 950mm |
| Maximum driving speed | 2.8km/h | Platform ground clearance | 440mm |
| maximum traction force | 16kn | Bucket width | 440mm |
| Platform speed | 14 r/min | Maximum excavation height | 3350mm |
| Total length | 3050mm | Maximum Digging Depth | 2042mm |
| Total width | 1100mm | Maximum digging radius | 3600mm |
| Tail turning radius | 790mm | Maximum dumping height | 2250mm |
| Maximum sinking depth of bulldozer | 195mm | Maximum lifting height of bulldozer | 200mm |

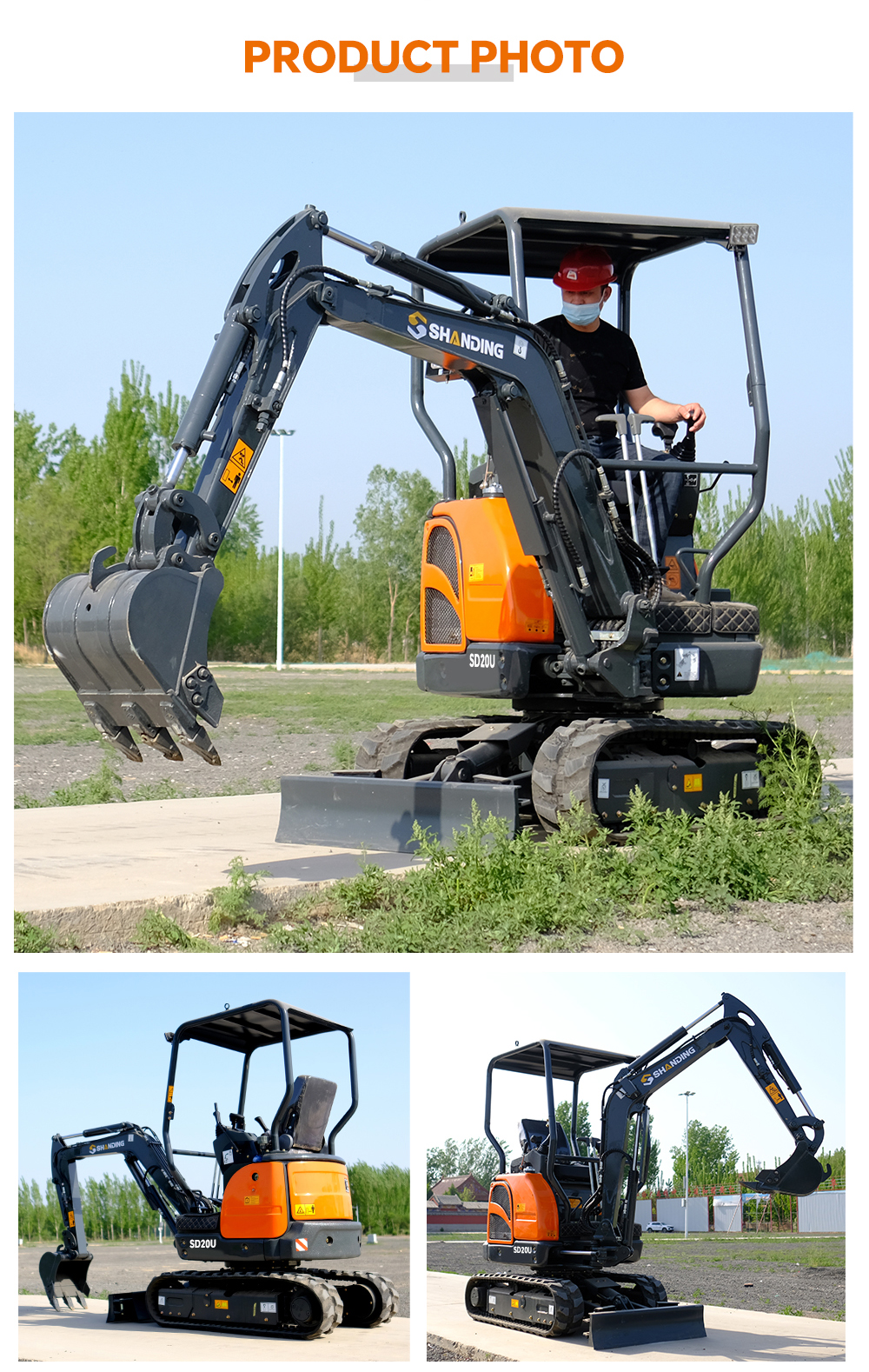

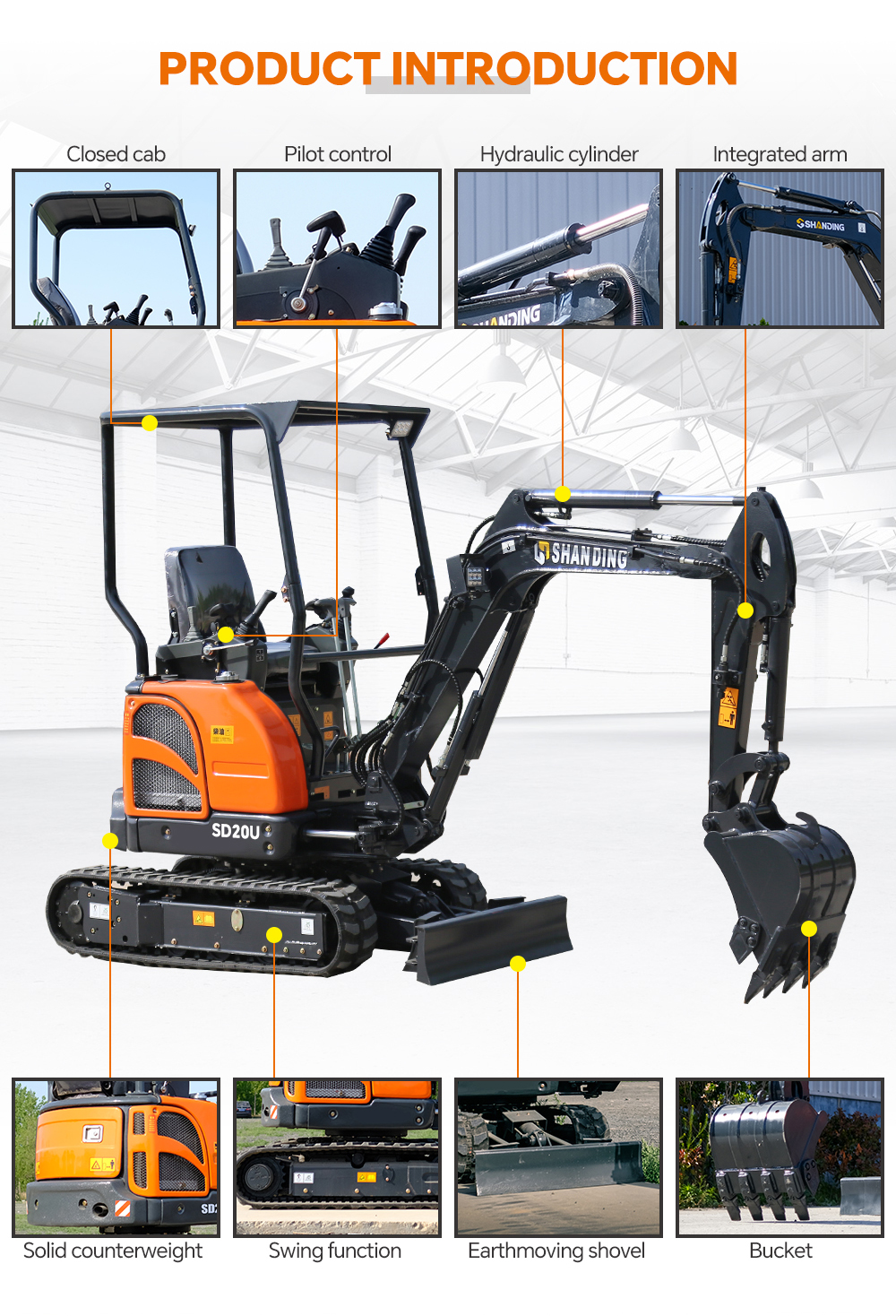

SD20U mini excavator adopts big arm side swing and tailless design, which can make the steering flexible and widely used in orchard nursery, gardening, greening, farmland renovation and other fields. forest greening, farmland renovation, indoor demolition and other operations.
SD20U excavator adopts double solid counterweight, the overall efficiency and stability of work
Greatly improve
ShanDing Group has a strong after-sales team and technical support, and can remotely assist customers to solve more than 90% of the problems.
