23.9hp
ENGINE POWER
2500kg
OPERATING WEIGHT
0.1 m3
BUCKET CAPACITY
Powered by the mature and robust YANMAR 3TNV80F engine, this top-brand 23.9HP engine guarantees the excavator’s performance
The high flow piston pump provides 60L/min hydraulic flow, ensuring stable and powerful output. It guarantees long lifetime and high reliability.
Featuring a Mechanical Quick Hitch, which makes changing attachments faster and easier than other machines, boosting efficiency.
Standard Hydraulic Thumb Grab allows operators to pick up various loads without switching to a specialized grabber, ensuring easy and efficient
Equipped with an industry-leading LED screen, presenting all machine data clearly and concisely to the operator for enhanced control
The machine I’m selling has a dual-speed travel feature, with a maximum travel speed of up to 4.1km/h, saving you time during long-distance movements.
With a heavy counterweight, the machine’s stability is significantly improved, providing outstanding lifting and digging power.
Our machine is ROPS and FOPS certified, highlighting our commitment to safety. The fully enclosed steel protects operators in extreme conditions.

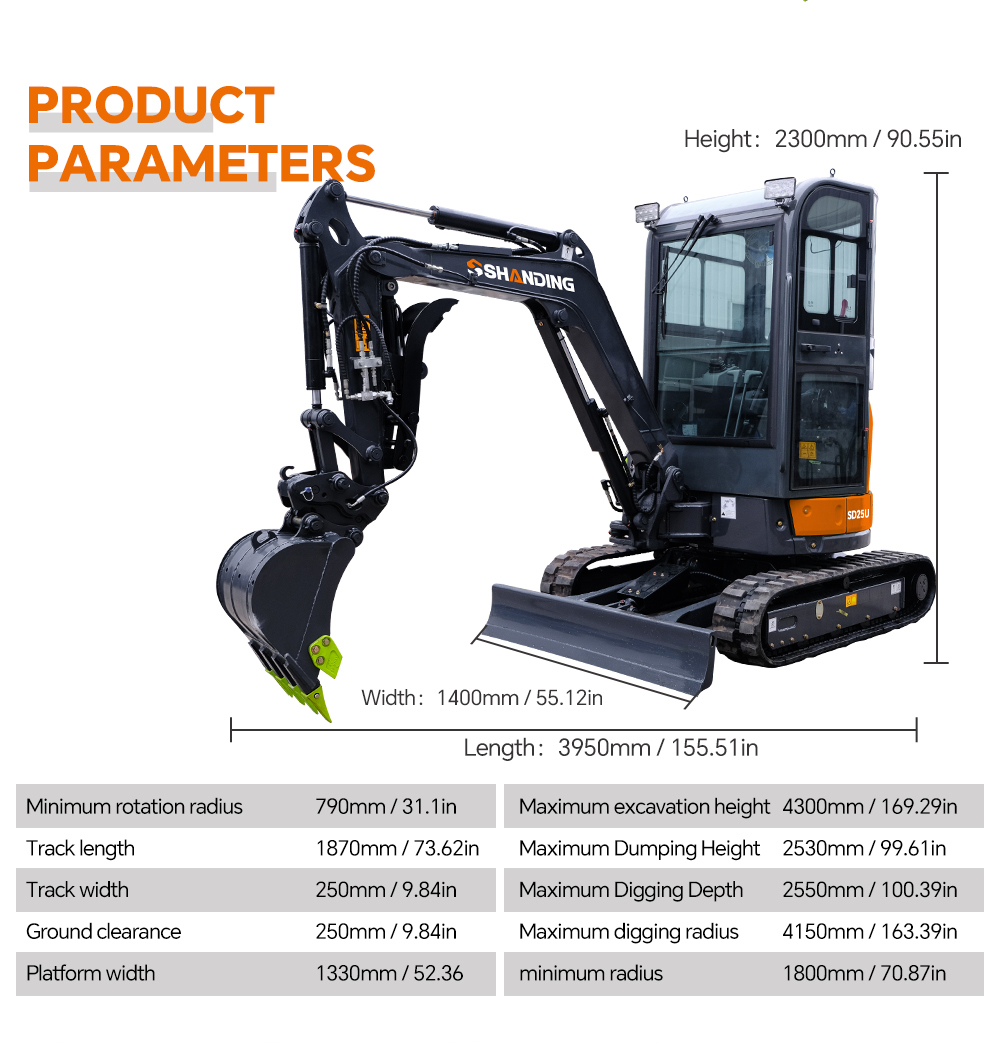

| Overall weight | 2420Kg | Minimum rotation radius | 790mm |
| Bucket capacity | 0.1m³ | Track length | 1870mm |
| Engine type | Perkins 403D11 | track width | 250mm |
| rated power | 14.7KW | Ground clearance | 250mm |
| Platform speed | 2200r/min | Platform width | 1330mm |
| Maximum hydraulic system pressure | 18MPa | Hood height | 1350mm |
| Maximum climbing angle | 30° | Platform ground clearance | 480mm |
| ground pressure | 35kpa | Maximum excavation height | 4300mm |
| Maximum driving speed | 2.5-3.5Km/h | Maximum Dumping Height | 2530mm |
| Maximum traction force | 16KN | Maximum Digging Depth | 2550mm |
| MaxPlatform speed | 11rmp | Maximum digging radius | 4150mm |
| Maximum excavating force | 15KN | Excavation radius for maximum excavation height | 2700mm |
| Total length | 3950mm | minimum radius | 1800mm |
| Total width | 1400mm | Total height | 2300mm |

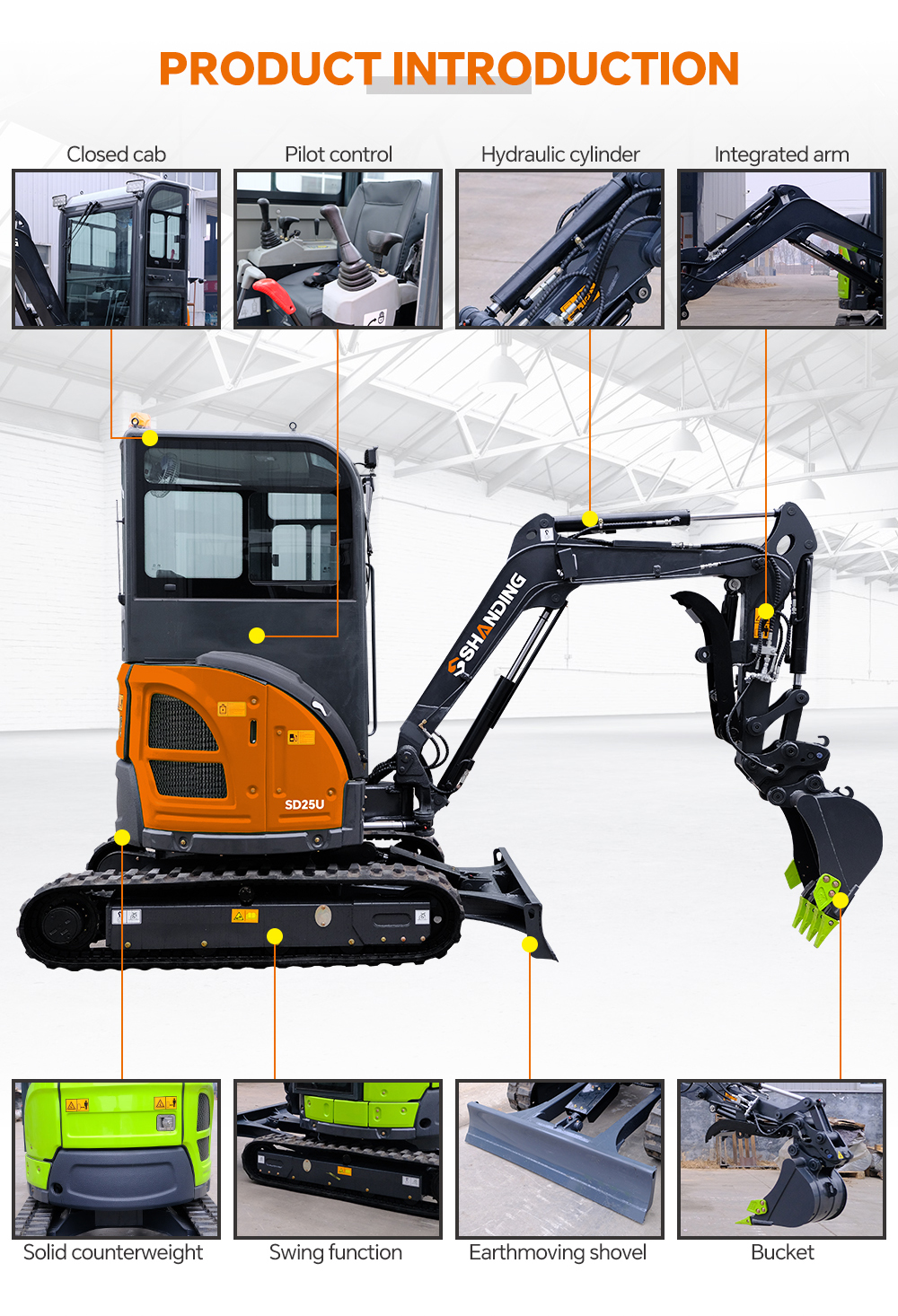

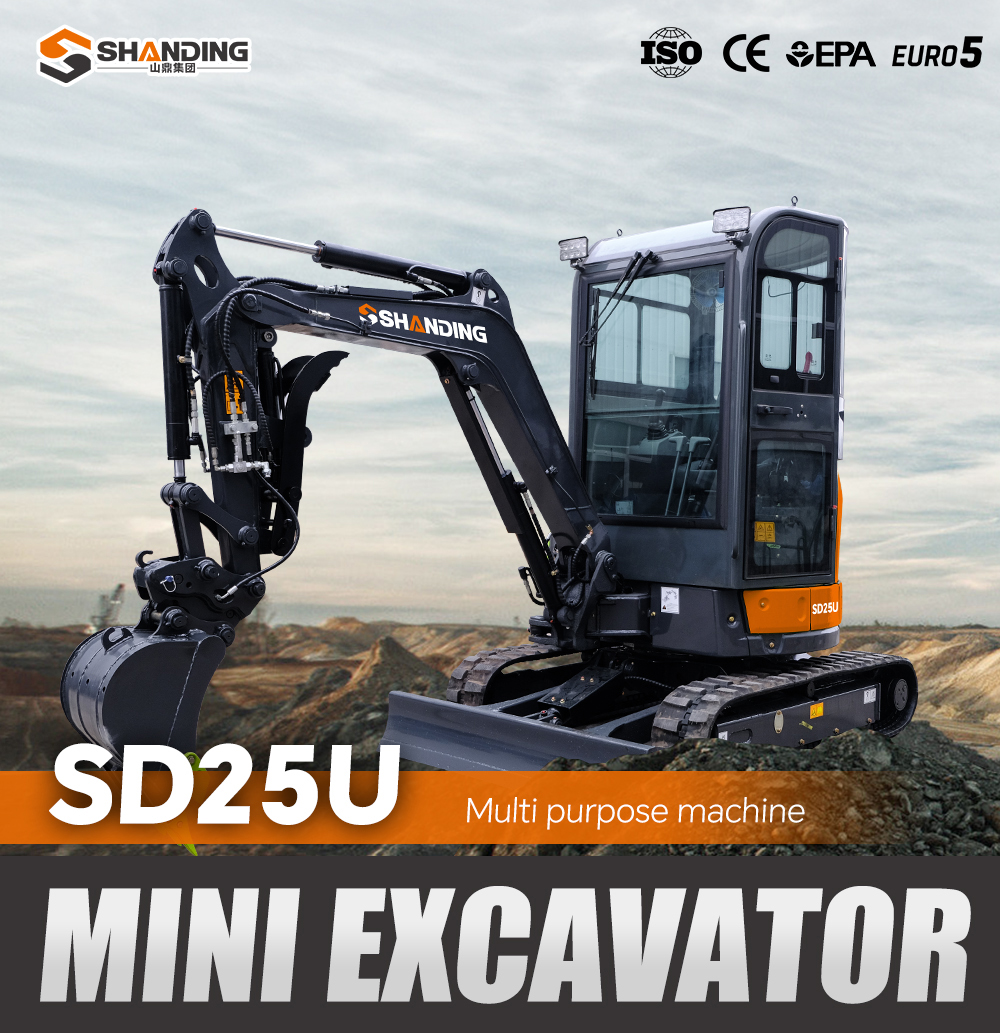

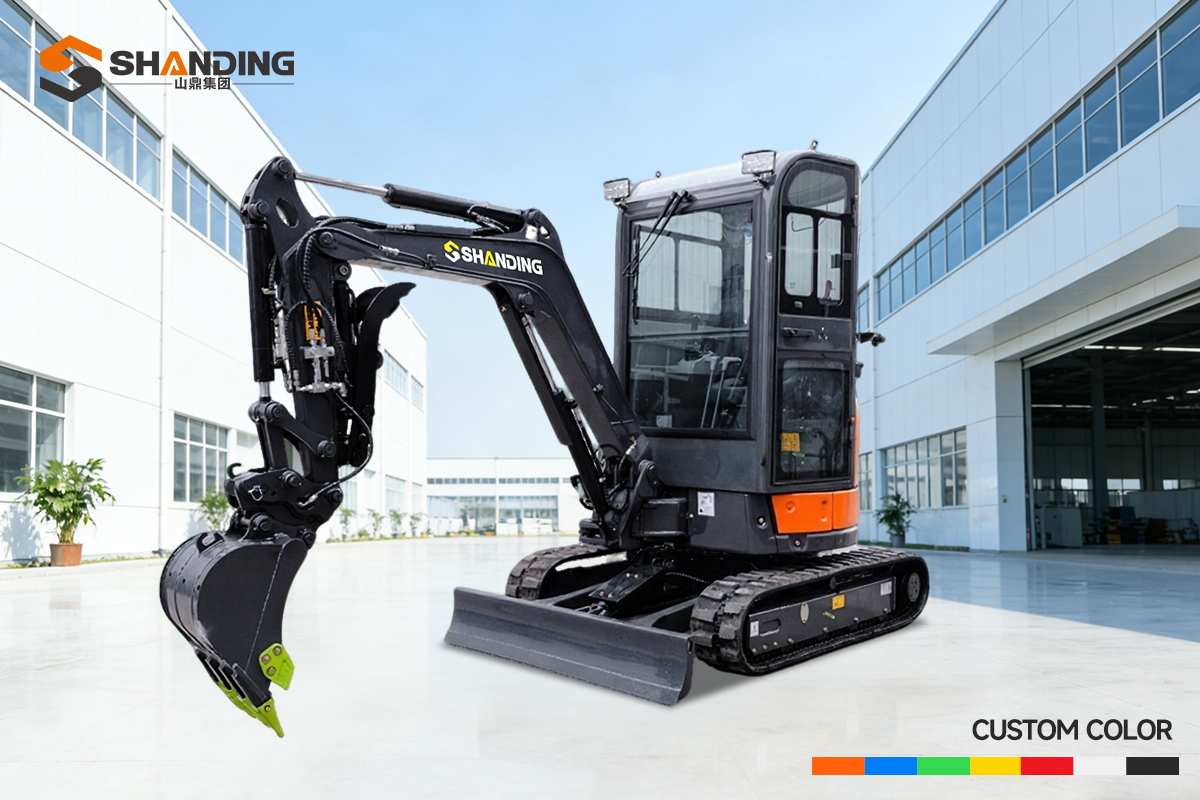

SD25U excavator is designed with hollow heat dissipation, molded once, simple and generous, open hood. Generous, open hood, easy for maintenance.
