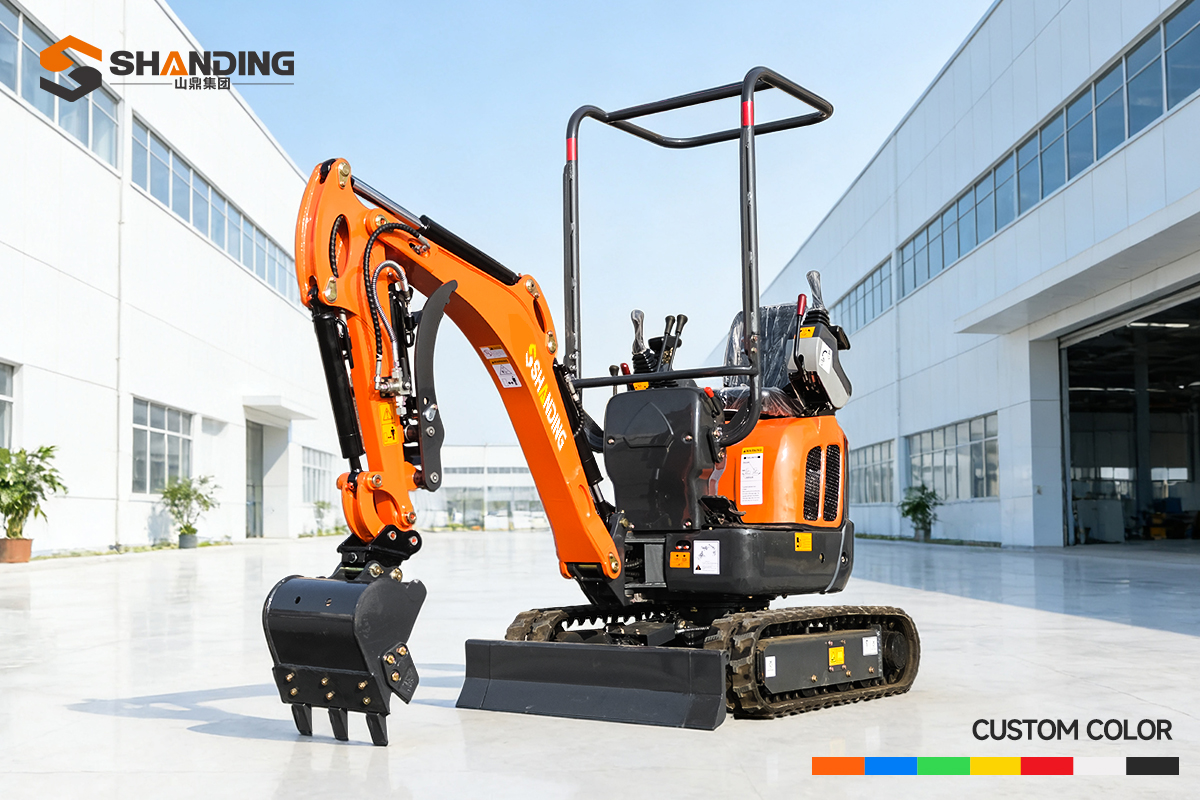

Shanding’s new small excavator SD12U has the following upgrades
1 The whole vehicle adopts moulded plastic shape. The shape is nice and beautiful.
2Three cast iron counterweights, higher stability
3Armrest box has height-adjustable armrest support, imitating ergonomics, suitable for different drivers.
4Double-sided hydraulic safety locks to ensure the safety of operation when getting on and off the vehicle on both sides
5Control system upgrade: telescopic and earth-moving shovel operating lever is beautiful and easy to operate
6 standard arm side swing function, cast iron side swing head, beautiful and durable
7 telescopic chassis standard structure telescopic function, telescopic range of 750-950mm, engineering track width of 180m, customer feedback of the width of the foreign door for 830mm.
8 The newly upgraded oil cylinder is located above the boom, preventing the cylinder from being hit when working, and the hidden oil pipe design makes the appearance neat and beautiful.
9 Instrument panel display can show the working time, fuel level, water temperature, oil pressure, battery voltage, etc., which is more advanced than the general small excavators are equipped with.
10 anti-roll frame: anti-roll cage design, to ensure the safety of the driver under extreme working conditions; foldable unfolding frame, easy to enter and exit the low space
11 upgraded shut-off valve to use both hydraulic thumb clamp and hydraulic quick change.
12 Dual-gauge travel motor: plunger motor, two-speed travel, motor with protective housing, travel speed of 2.3Km-4.6Km/h, hydraulic oil pipe increased protection
13 bulldozer cylinders are equipped with protection plates to protect the cylinders from damage during operation.
14 The use of high-flow double gear pumps to ensure adequate supply of hydraulic oil flow at work
15 Taifeng brand load-sensitive multi-way valve: Taifeng brand load-sensitive multi-way valve, together with load-sensitive variable piston pump, can realise three times compound action, smooth operation process, energy-saving and fuel-saving, high working efficiency.
16 can be turned over as a whole, easy maintenance and repair
17 The whole vehicle is welded and then processed to ensure that the structural components are standard and not deformed, and to improve strength.
