Engine power
73.5KW
Bucket capacity
0.5m³
Excavation depth
4135mm

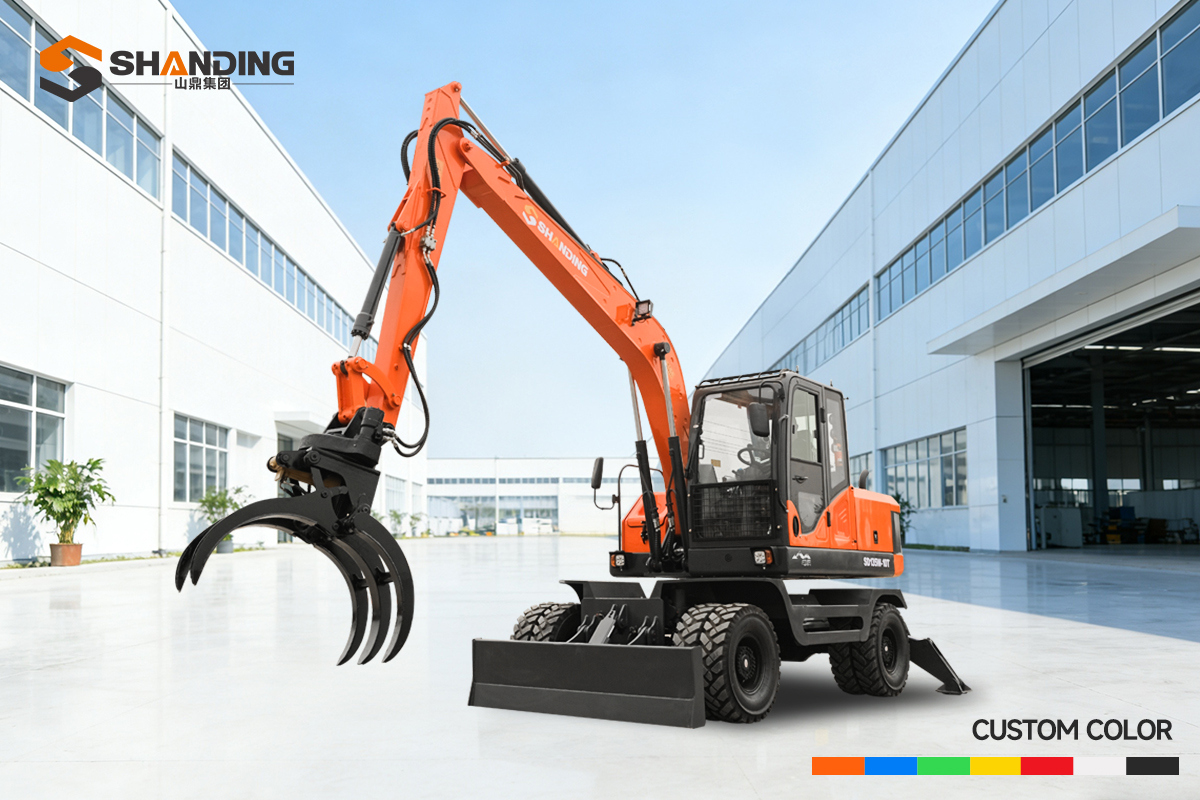

Shanding Wheel Dredge 135W has a streamlined design, which is beautiful and generous, and the luxurious cab has better sealing and vibration damping performance. The cab is more comfortable to operate and has better sealing and vibration damping.
| model | XG135W-9T | Engine model | YC4A100-302 |
| L * W * H | 7335*2450*3090mm | Rated power | 73.5kw |
| Tail turning radius | 2095mm | wheelbase | 2750mm |
| Track width | 2000mm | Bucket capacity | 0.5m³ |
| Gradient | 38° | Slewing speed | 13-14rpm |
| Travel speed | 30km | Hydraulic system pressure | 28mpa |
| Digging height | 8230mm | Excavation depth | 4350mm |
| Unloading height | 5990mm | Excavation radius | 8088mm |
| Bucket digging force | 40kn | Maximum ground excavation distance | 7867mm |
| Bulldozer plate height | 2500mm | Maximum vertical excavation depth | 4135mm |
| Ground clearance of counterweight | 1246mm | Minimum ground clearance | 335mm |
