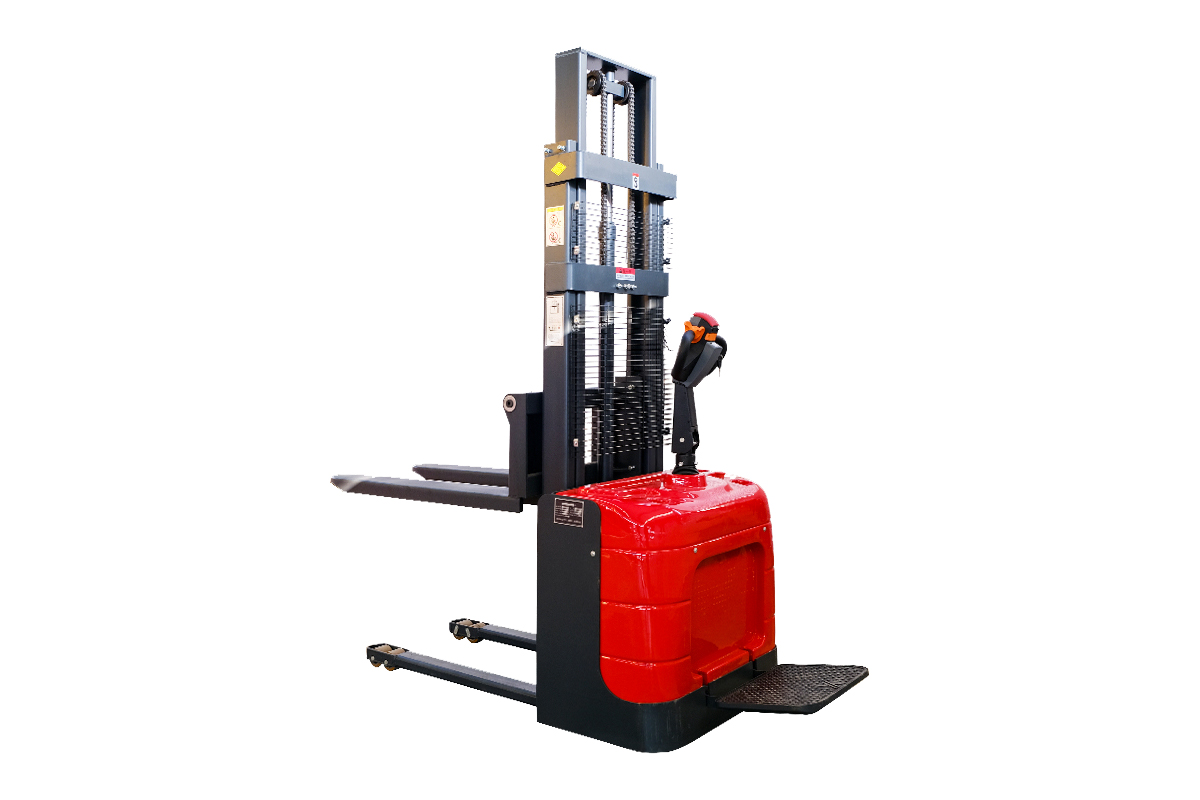

Rated lifting capacity
1500kg
Maximum height during operation
3570mm
Power type
Battery
| Power type | Battery | Maximum lifting speed without load | 100mm/75mm/s |
| Rated lifting capacity | 1500kg | Maximum operating speed under full load | 3.4km/h |
| Load center distance | 500mm | Maximum no-load running speed | 4km/h |
| Driving style | Standing driving type | Maximum gradient (full load/no load) | 5/10% |
| Total vehicle length | 1870/2270mm | Drive motor power | DC0.75KW |
| Overall vehicle width | 852mm | Power of oil pump motor | DC2.2kw |
| Height of non lifting mast | 2080mm | Total weight (including battery) | 590kg |
| Maximum height during lifting | 3000mm | Battery rated voltage | 48V/4*20AH |
| Maximum height during operation | 3570mm | santry material | 8mm C section steel |
| Minimum ground clearance of vehicle body | 30mm | Charger | 48V20A |
| Minimum ground clearance of fork | ≤90mm | Dimension of carrier wheel (front wheel) | 80*70mm |
| Minimum turning radius | 1550mm | Balance wheel size (rear wheel) | 125*50mm |
| Outside width of fork | 550/680mm | Drive wheel size | 160*50mm |
| Fork size (L*W*H) | 1100*170*55mm | Braking mode | Electromagnetic braking |
Factory direct sales, 25 years experience in forklift production
Shipping from one piece, a variety of shipping terms can be selected
