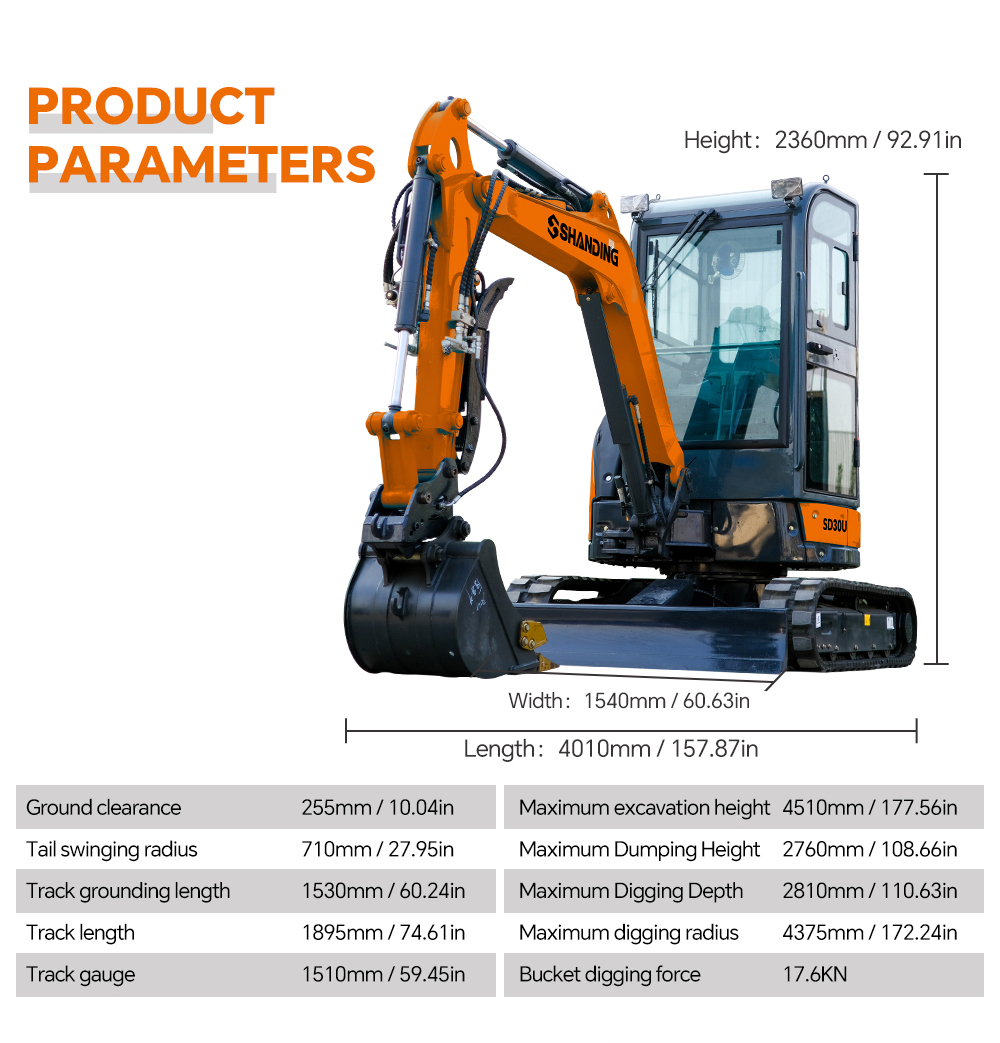

rated power	14.7KW	Total width	1540mm
rotation speed	13.5 r/min	Total height (to the top of the boom)	1380mm
Bucket capacity	0.075m³	Total height (to the top of the cab)	2360mm
Bucket width	460 mm	Ground clearance of counterweight	485mm
Maximum excavation height	3865mm	Ground clearance	255mm
Maximum Dumping Height	2760mm	Tail swinging radius	710mm
Maximum Digging Depth	2560mm	Track grounding length	1530mm
Maximum vertical excavation depth	2440mm	Track length	1895mm
Maximum excavation distance	4375mm	Track gauge	1510mm
Maximum digging radius	4275mm	Rotate Frame Width	1350mm
Bucket digging force	18.6 KN	operating weight	2870kg
Total length	4050mm	ground pressure	26.7 KPa

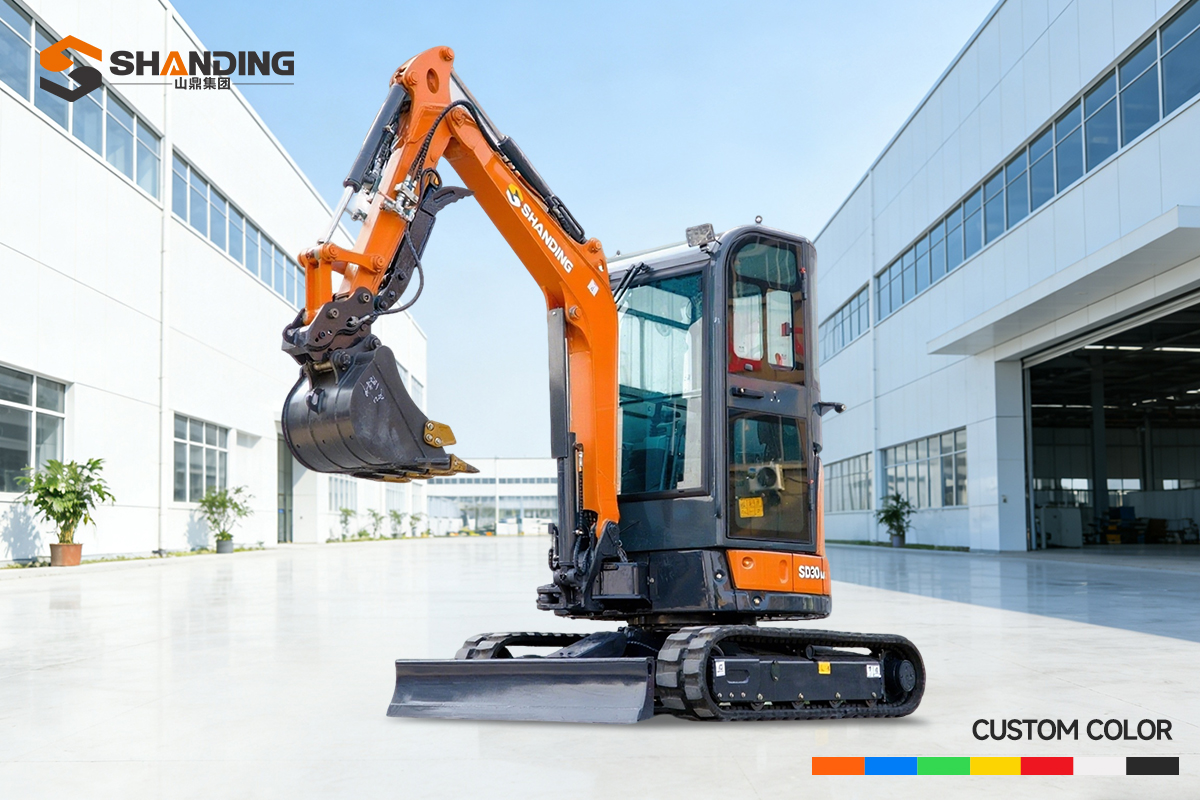

SD30U mini excavator is an efficiency model with stable system, strong power and wide range of application with big arm side swing function. SD30U strengthened large and small arm design, strong and durable, greatly extending the service life of the whole machine.
